UCP217D1 X AS3S5
SIAIF UCP217D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP217D1 X AS3S5
Thickness(mm)：95.2
Inner diameter d：85
Outer diameter D：310
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing UCP217D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)85

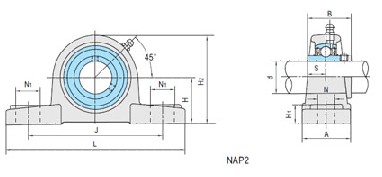

Size Dimensions(mm)(inch)
  • H95.2
  • L310
  • J247
  • A83
  • N25
  • N130
  • H132
  • H2187
  • S34.1
  • B85.7
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP217D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M20
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC217D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)11.28
Seat code Housing No.
  • Seat code Housing No.P217
