UC306D1
SIAIF UC306D1
Type

Insert ball bearings with housing

Model：UC306D1
Thickness(mm)：72
Inner diameter d：30
Outer diameter D：43
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />






Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)30

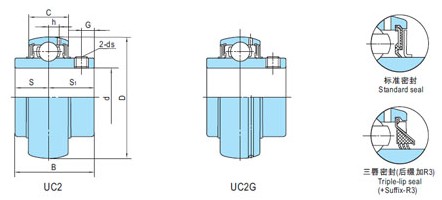

Size Dimensions(mm)(inch)
  • D72
  • B43
  • C24
  • S17
  • S126
  • G6
  • h6.5
  • dsM6X0.75
Load rating (KN)
  • Cr28.1
  • Cor15.8
Bearing model
  • Bearing modelUC306
weightWeight (kg) (lb)
  • weightWeight (kg) (lb)0.56
