Detailed information
带Set screw锁定和加长Inner circle的嵌入式Bearing
嵌入式Bearing基于SealDeep groove ball bearingsdesign的。 这种type式的嵌入式Bearing适用于旋转方向固定或交替的应用。 Inner circle两侧加长，通过Inner circleSuperior的两个Set screw锁定在轴Superior，便于安装。
- Suitable for constant and alternating direction rotation
- Quick and easy to mount onto the shaft
- Accommodate static initial misalignment
- Long service life
- Reduced noise and vibration levels

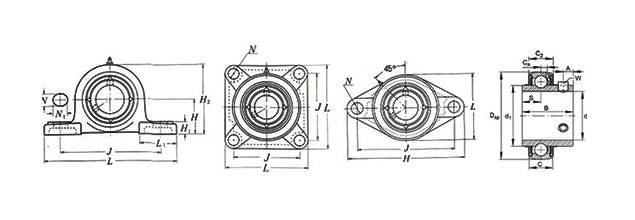

Size
| d | 55 mm | Aperture |
|---|---|---|
| D | 120 mm | Outer diameter |
| B | 66 mm | Inner circleWidth |
| C | 32 mm | Outer ringWidth |
| d1 | ≈76.1 mm | Inner circleOuter diameter |
| B4 | 12 mm | Distance from side to thread center |
| r1,2 | min.3 mm | Inner circleChamfer size |
| s1 | 41 mm | Distance from the side of the anti-loosening buckle to the center of the raceway |
Data calculation
| Basic dynamic load rating | C | 71.5 kN |
| Basic static load rating | C0 | 45 kN |
| Fatigue load limit | Pu | 1.9 kN |
| Limit speed | 3 100 r/min | |
| h6轴公差Down的Limit speed | ||
| Calculate coefficient | f0 | 13 |
Installation Information
| Set screw | G2 | M12x1.5 |
| Hexagon of set screwWrenchSize | N | 6.08 mm |
| Recommended set screw torqueTightening torque | 28.5 N·m |
