UCP216D1 X AS3S5
SIAIF UCP216D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP216D1 X AS3S5
Thickness(mm)：88.9
Inner diameter d：80
Outer diameter D：292
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing UCP216D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)80

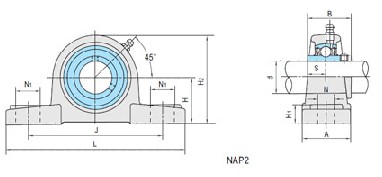

Size Dimensions(mm)(inch)
  • H88.9
  • L292
  • J232
  • A78
  • N25
  • N130
  • H130
  • H2175
  • S33.3
  • B82.6
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP216D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M20
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC216D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)9.03
Seat code Housing No.
  • Seat code Housing No.P216
