UCP214D1 X AS3S5
SIAIF UCP214D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP214D1 X AS3S5
Thickness(mm)：79.4
Inner diameter d：70
Outer diameter D：266
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing UCP214D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)70

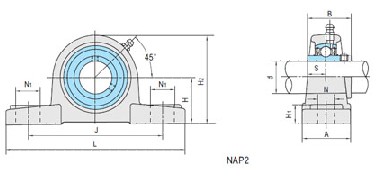

Size Dimensions(mm)(inch)
  • H79.4
  • L266
  • J210
  • A72
  • N25
  • N130
  • H127
  • H2157
  • S30.2
  • B74.6
 BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP214D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M20
  Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC214D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)6.90
Seat code Housing No.
  • Seat code Housing No.P214
