UCP212D1 X AS3S5
SIAIF UCP212D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP212D1 X AS3S5
Thickness(mm)：69.8
Inner diameter d：60
Outer diameter D：241
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

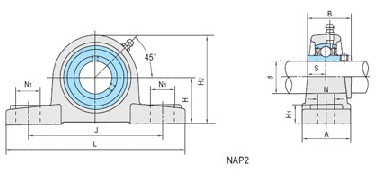

Bearing seat UCP212D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)60
Size Dimensions(mm)(inch)
  • H69.8
  • L241
  • J184
  • A70
  • N20
  • N125
  • H125
  • H2138
  • S25.4
  • B65.1
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP212D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M16
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC212D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)5.10
Seat code Housing No.
  • Seat code Housing No.P212
