UCP209D1 X AS3S5
SIAIF UCP209D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP209D1 X AS3S5
Thickness(mm)：54
Inner diameter d：45
Outer diameter D：190
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing seat UCP209D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)45

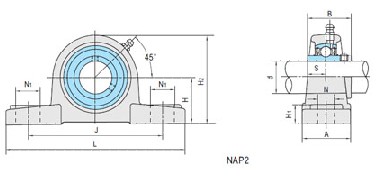

Size Dimensions(mm)(inch)
  • H54.0
  • L190
  • J146
  • A54
  • N17
  • N121
  • H120
  • H2106
  • S19.0
  • B49.2
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP209D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M14
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC209D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)2.45
Seat code Housing No.
  • Seat code Housing No.P209
