UCP207D1 X AS3S5
SIAIF UCP207D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP207D1 X AS3S5
Thickness(mm)：47.6
Inner diameter d：35
Outer diameter D：167
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing UCP207D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)35

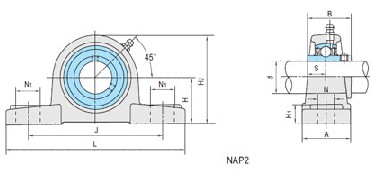

Size Dimensions(mm)(inch)
  • H47.6
  • L167
  • J127
  • A48
  • N17
  • N121
  • H118
  • H293
  • S17.5
  • B42.9
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP207D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M14
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC207D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)1.72
Seat code Housing No.
  • Seat code Housing No.P207
