UCP206D1 X AS3S5
SIAIF UCP206D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP206D1 X AS3S5
Thickness(mm)：42.9
Inner diameter d：30
Outer diameter D：165
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing UCP206D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)30

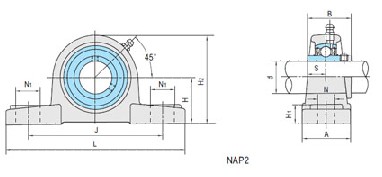

Size Dimensions(mm)(inch)
  • H42.9
  • L165
  • J121
  • A48
  • N17
  • N121
  • H117
  • H283
  • S15.9
  • B38.1
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP206D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M14
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC206D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)1.32
Seat code Housing No.
  • Seat code Housing No.P206
