UCP204D1 X AS3S5
SIAIF UCP204D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP204D1 X AS3S5
Thickness(mm)：33.3
Inner diameter d：20
Outer diameter D：127
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />



Bearing UCP204D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)20

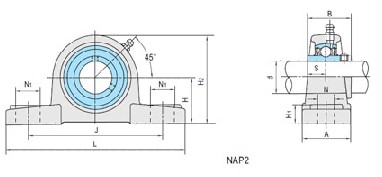

Size Dimensions(mm)(inch)
  • H33.3
  • L127
  • J95
  • A38
  • N13
  • N119
  • H114
  • H265
  • S12.7
  • B31.0
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP204D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M10
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC204D1 X
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)0.73
Seat code Housing No.
  • Seat code Housing No.P204
