241/710CAE4
SIAIF 241/710CAE4
Type

Self-aligning roller bearing

Model：241/710CAE4
Thickness(mm)：438
Inner diameter d：710
Outer diameter D：1150
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />
过期key网站,修改网站Key,..

Constant
  • e0.38
Axis load factor
  • Y 2 2.6
  • Y 3 1.8
  • Y o 1.7

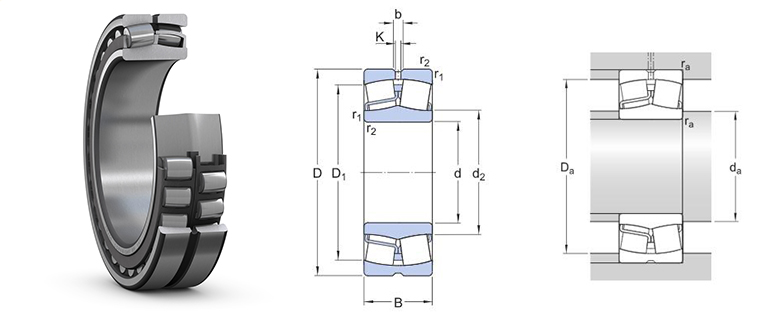

Dimensions
  • d710
  • D1150
  • B438
  • r (Minimum)9.5
Load rating (N)
  • Cr13900000
  • Cor30500000
Load rating (kgf)
  • Cr1410000
  • Cor3100000
Limit speed(rpm)
  • Grease lubrication170
  • Oil lubrication220
Bearing code (1)
  • Cylindrical hole241/710CAE4
  • Conical hole(2)241/710CAK30E4
Installation size (mm)
  • d a (Minimum)754
  • Da (Maximum)1106
  • Da (Minimum)981
  • r a (Maximum)8
weight(kg)
  • (Refer to)1730
