C3022K1
SIAIF C3022K1
Type

CARB toroidal roller bearing

Model：C3022K1
Thickness(mm)：45
Inner diameter d：110
Outer diameter D：170
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />
Basic size mm
  • d110
  • D170
  • B45
Basic load rating kN
  • DynamicsC355
  • Static Co480
RatedSpeed r/min
  • Reference speed3200
  • Limit speed4500
Model
  • BearingCylindrical hole*C30221)
  • Conical hole*C3022K1)

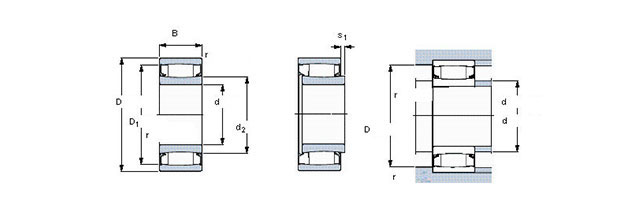

Size mm
  • d110
  • d 2 ～128
  • D1 ～156
  • r 1,2 Minimum2
  • s 1 1) ～9.5
  • s 2 1) ～-
Shoulder and chamfer dimensions mm
  • d a Minimum119
  • d a Maximum127
  • Da Minimum157
  • Da Maximum161
  • Ca 2) Maximum4
  • r a Maximum2
Calculate coefficient
  • k 1 0.107
  • k 2 0.11
Fatigue load limit Pu
  • Fatigue load limit Pu51
Quality
  • Quality3.5
