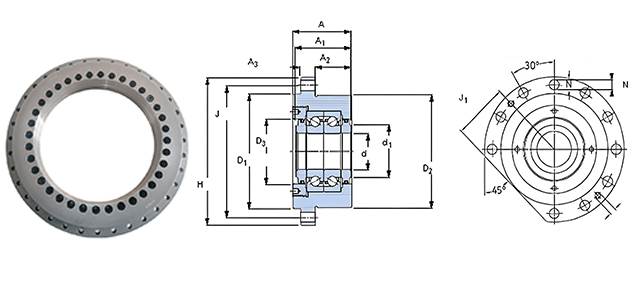

| Size(mm) |
- d200
- D300
- h45
- H 1 30
- C15
- D 1 max274
- J215
- J 1 285
|
| Fixing hole |
- Inner circle d 1 7
- Inner circle d 2 11
- Inner circle a7
- Quantity 4) 45
- Outer ringd s 7
- Number of outer rings 4) 48
|
| Threaded extraction hole |
|
| Basic load rating |
- Axial dynamic load C a N120000
- Axial static load C oa N765000
- Radial dynamic load C r N81500
- RadialStatic loadC or N220000
|
| Stiffness |
- Support position 3) Axialc aL kN/μm1.8
- Support position 3) Radialc rL kN/μm3.5
- Support position 3) Overturning stiffnessc kL kN m /mrad23
- Rolling element component Axialc aL kN/μm12.2
- Rolling element component Radialc rL kN/μm5.8
- Rolling element component Overturning stiffnessc kL kN m /mrad88
|
| Model |
|
| Quality m ≈kg |
|
| Angle t1) Quantity×t |
- Angle t1) Quantity×t48×7.5°
|
| Bolt tightening torque M A 2) N m |
- Bolt tightening torque M A 2) N m 14
|
| Limit speed 6) n G min –1 |
- Limit speed 6) n G min –1 260
|
| Bearing friction torque M RL N m |
- Bearing friction torque M RL N m 11
|
