53226
SIAIF 53226
Type

Thrust ball bearing

Model：53226
Thickness(mm)：53
Inner diameter d：130
Outer diameter D：190
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />
Model
  • Bearing53226
  • 座WasherU226
Basic size mm
  • d130
  • D190
  • H 1 53
Basic load rating kN
  • DynamicsC186
  • Static Co585
RatedSpeed r/min
  • Reference speed1400
  • Limit speed2000

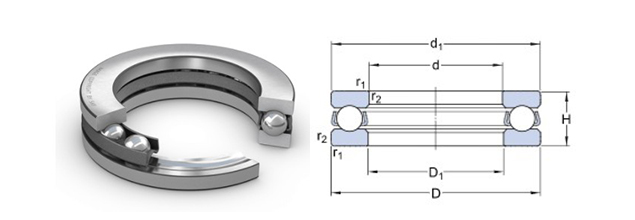

Size mm
  • d130
  • d 1 ～187
  • D1 ～133
  • D 2 160
  • D 3 195
  • H47.9
  • C17
  • R140
  • s67
  • r 1,2 Minimum1.5
Shoulder and chamfer dimensions mm
  • d a Minimum166
  • Da Maximum160
  • r a Maximum1.5
Fatigue load limitPu
  • Fatigue load limitPu17
Minimum load factor A
  • Minimum load factor A1.8
QualityBearing+Seat
  • QualityBearing+Seat4.85
