29432E
SIAIF 29432E
Type

Spherical roller thrust bearing

Model：29432E
Thickness(mm)：95
Inner diameter d：160
Outer diameter D：320
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />
Basic size mm
  • d160
  • D320
  • H95
Basic load rating kN
  • DynamicsC2080
  • Static Co5600
RatedSpeed r/min
  • Reference speed1100
  • Limit speed2000

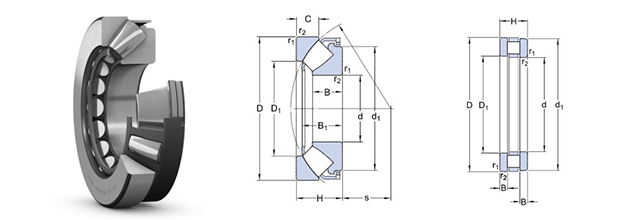

Size mm
  • d160
  • d 1 ～279.3
  • D1 ～223.5
  • B60.5
  • B 1 84.3
  • C45.5
  • r 1,2 Minimum5
  • s99
Shoulder and chamfer dimensions mm
  • d a Minimum235
  • d b1 Maximum175
  • d b2 Maximum189
  • H a Minimum-
  • Da Maximum270
  • r a Maximum4
Fatigue load limitPu
  • Fatigue load limitPu570
Minimum load factor A
  • Minimum load factor A3
Quality kg
  • Quality kg33.5
Model
  • Model*29432E
