SG534-0
SIAIF SG534-0
Type

Self-aligning bearing with vertical pedestal

Model：SG534-0
Thickness(mm)：0
Inner diameter d：150
Outer diameter D：0
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />
Shaft diameter(mm)
  • d 1 150
Model(1)
  • Through-throughSG534
  • Shaft endSG534-0

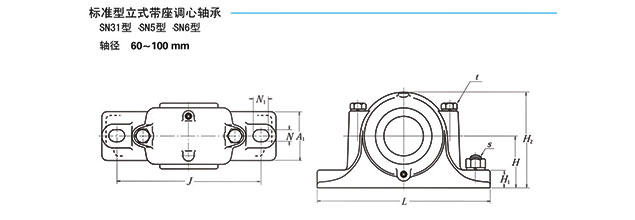

Size(mm)
  • D H8310
  • H h13180
  • J550
  • N33
  • N 1 42
  • A300
  • L640
  • A 1 180
  • H 1 55
  • H 2 380
  • J 1 100
  • g H13265
  • g 1 H1391
  • t (Specification)M30
  • s (Specification)M30
Adapter sleeve
  • No.H3134
Spherical roller bearings
  • Model22234CDK
  • Dynamic load ratingCr(N)990000
Positioning circle
  • Specification (outer diameter×width)SR310×5
  • Number1
Oil seal(3)
  • Oil seal(3)GS34
weight(kg)(Refer to)
  • Through-through130
  • Shaft end115
