ANL40
SIAIF ANL40
Type

Nuts for rolling bearings

Model：ANL40
Thickness(mm)：29
Inner diameter d：201.5
Outer diameter D：240
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

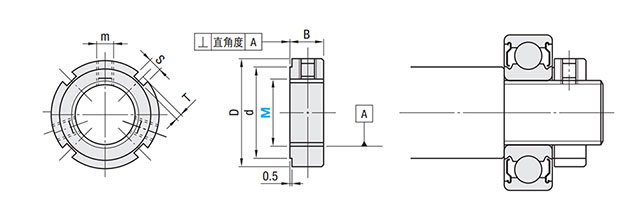

Standard size
  • d 2 240
  • d 1 218
  • g224
  • b18
  • h8
  • d 3 201.5
  • B29
  • r(Maximum)0.7
weight (kg)
  • (Refer to)2.98
Model
  • ModelANL40
Thread specification G
  • Thread specification GM200×3
Fixed lining(1)套Model
  • Fixed lining(1)套Model40
nut的Model
  • nut的ModelAWL40
Shaft diameter (for shaft)
  • Shaft diameter (for shaft)200
