Detailed information
Deep groove ball bearing for high temperature applications
Single row deep groove ball bearings for high temperature applications are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have increased radial internal clearances and use graphite-based lubricants that are optimized for operation at high temperatures. The entire surface of the bearings are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.
Optimized for operation at high temperatures – up to 350 °C (660 °F)
Easily swapped with grease-lubricated bearings of corresponding ISO dimensions
Increased reliability, reduced complexity and decreased environmental impact
Typical benefits of single row deep groove ball bearings
| Running in required | Yes |

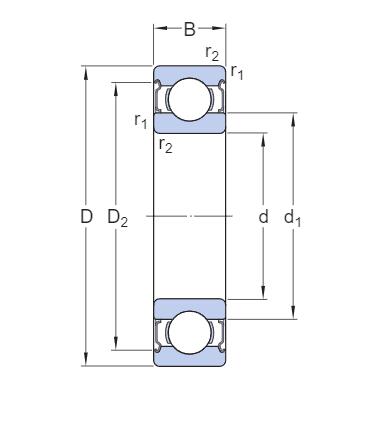

Dimensions
| d | 1.181 in | Bore diameter |
|---|---|---|
| D | 2.165 in | Outside diameter |
| B | 0.512 in | Width |
| d1 | ≈1.504 in | Shoulder diameter inner ring |
| D2 | ≈1.929 in | Recess diameter outer ring shoulder |
| r1,2 | min.0.039 in | Chamfer dimension |

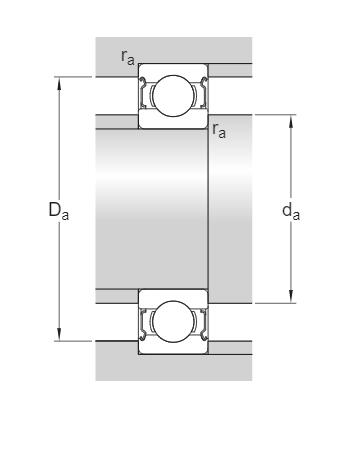

Abutment dimensions
| da | min.1.362 in | Abutment diameter shaft |
|---|---|---|
| da | max.1.5 in | Abutment diameter shaft |
| Da | max.1.984 in | Abutment diameter housing |
| ra | max.0.039 in | Fillet radius |
Calculation data
| Basic static load rating | C0 | 1 866 lbf |
|---|---|---|
| Limiting speed | 100 r/min | |
| Operating temperature | T | max.482 °F |
