100KV895
SIAIF 100KV895
Type

Bearings for roll necks

Model：100KV895
Thickness(mm)：104
Inner diameter d：100
Outer diameter D：140
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

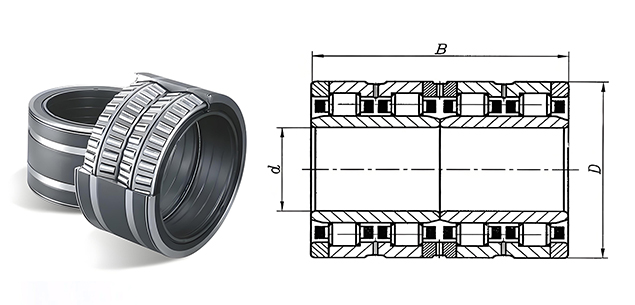

Dimensions(mm)
  • d100
  • D140
  • B 4 104
  • C 4 104
Load rating(N)
  • Cr320000
  • Cor765000
Load rating(kgf)
  • Cr32500
  • Cor78000
Installation size(mm)
  • d a 109
  • Dx130
  • r a (Maximum)2
weight(kg)
  • (Refer to)4.9
Bearing code
  • Bearing code100KV895
r b (Maximum)
  • r b (Maximum)1.5
Reference model
  • Reference model-
