QJ205-MPA
GYJ QJ205-MPA
Type

Four-point contact ball bearing

Model：QJ205-MPA
Thickness(mm)：15
Inner diameter d：25
Outer diameter D：52
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

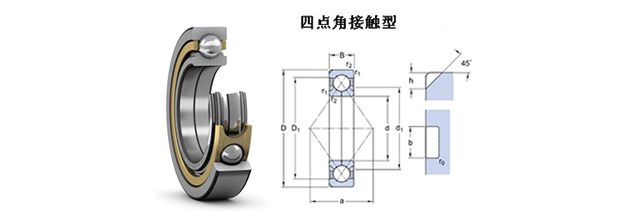

Size mm
  • d25
  • D52
  • B15
  • r min 1
  • D 1 ≈43.1
  • d 1 ≈34.2
  • a ≈27
  • a n -
  • b n -
  • r n -
Installation size mm
  • d a min31
  • D a max46
  • r a max1
Basic load rating N
  • Dynamic load C r 25500
  • Static load C or 18600
Model
  • ModelQJ205-MPA
Qualitym ≈kg
  • Qualitym ≈kg0.171
Fatigue limit load C ur / N
  • Fatigue limit load C ur / N950
Limit speed n G fat min –1
  • Limit speed n G fat min –1 26000
