4T-97500/97900
GYJ 4T-97500/97900
Type

Automobile bearing

Model：4T-97500/97900
Thickness(mm)：49.428
Inner diameter d：127
Outer diameter D：228.6
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

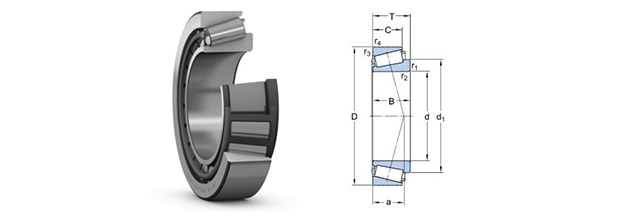

Main dimensions mm
  • d127.000
  • D228.600
  • T53.975
  • B49.428
  • C38.100
Rated base loadKN
  • Dynamic loadCr320
  • Static loadCor445
Rated base loadkgf
  • Dynamic loadCr32500
  • Static loadCor45000
Allow speed min -1
  • Grease lubrication1400
  • Oil lubrication1900
Installation related dimensions mm
  • d a 151
  • d b 144
  • D a 197
  • D b 213
  • r as Maximum3.5
  • r 1as Maximum3.3
Action point mm
  • a-13.41)
Constant
  • e0.74
Axial load factor
  • Y 2 0.81
  • Y 0 0.45
weight kg
  • (About)8.43
Bearing number
  • Bearing number4T-97500/97900
